Description



Key Features

• 2 analog channels
• 50MHz bandwidth
• Up to 200MSa/s sample rate
• Up to 256Mbits hardware memory
• Ultra-portable size
• Unibody aluminum case
• 1-year warranty

Connectivity

• Main Type-C USB 2.0 interface
• Auxiliary Type-C USB interface
• BNC connectors (Standard Probe Interface)
• Extension interface (Pogo Pin Connector)

Power Source

• Power source voltage: 5V_DC±5%
• Power consumption: 2.5 W maximum

Input output ports

	Direction	Descriptions	Protected Voltage Range
USB 2.0 port	InOut	Connect to host computer	4.75v ~ 5.25v
Auxiliary USB power port	Input	Auxiliary power	4.5v ~ 5.5v
BNC connectors	Input	Connect to probes	-100v ~ +100v (DC+AC)
Extension interface	InOut	Extension probes and module	0-3.3v
Probe compensator	Output	3v // ~1KHz square wave	—

Designed to make your work enjoyable

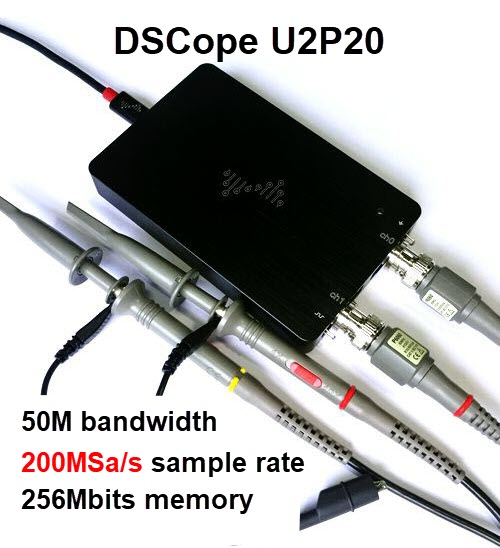

DSCope U2P20 is an USB-based digital oscilloscope, which has a portable size (115x74x16mm), but powerful performance (up to 200MHz sample rate). With the easy-to-use and cross platform software, DSView, you can use your favorite computer to debug and analysis your circuits, observe the analog wave and its frequency spectrum at anywhere and anytime.

Technical Specifications

Vertical system

Bandwidth:	50MHz
Input coupling:	DC or AC
Input impedance:	1MΩ // ~20pF
Input sensitivity range:	10mV/Div to 2V/Div
Vertical resolution:	8bits
Maximum input voltage:	peaks ≤ ±100V
DC gain accuracy:	±6%
Vertical position range:	±5 divisions
Vertical offset ranges:	Volts/Div setting                      Offset rang 10mV/Div ~ 2V/Div                            ±100mV ~ ±20V/Div
Common mode rejection ratio(CMRR):	—
Channel-to-channel isolation:	—

Horizontal system

Maximum sample rate(single channel):	200MSa/s
Maximum sample rate(dual channel):	100MSa/s
Time base range:	10ns/Div to 10s/Div
Maximum duration of time captured at highest sample rate (all channels):	10ms (real-time capture) 100ms (single capture)
Record Length (real-time capture):	1Mpts (2 channels enabled) 2Mpts (1 channel enabled)
Record Length (single capture):	16Mpts (2 channels enabled) 32Mpts (1 channel enabled)

Trigger system

Trigger mode:	Auto Normal (ch0, ch1, ch0 & ch1, ch0 || ch1)
Trigger position range:	1% ~ 99% of record length
Trigger holdoff range:	1 us ~ 10 s
Trigger types:	Edge (rising or falling)
Sensitivity:	0 ~ 0.625 vertical division
Trigger level ranges:	±4.4 vertical division from center screen

Waveform measurements

Cursors:	Horizontal Width/Frequency/Period/Duty Vertical Amplitude
Automated measurements:	Frequency / Period / +Duty /- Duty / +Count Rise / Fall / +Width / -Width / BrstW Amplitude / High / Low / RMS / Mean Pk-Pk / Max / Min / +Over / -OVer

Waveform math

FFT:	Spectrum magnitude Length: 1K ~ 16K Vertical scale: Linear RMS or DBV RMS Window: Rectangle, Hann, Hamming, Blackman, Flat_top
Math:	Add / Subtract / Multiply / Divide

Waveform display

Time domain:	Real-time viewSingle capture view
X-Y mode:	Lissajous Figure

System Requirements

• Windows XP, Vista, Win7, Win8 & Win10
• Mac OS X 10.12 or above
• Linux: recent Ubuntu, Fedora, Arch, etc.
• USB 2.0 Host port

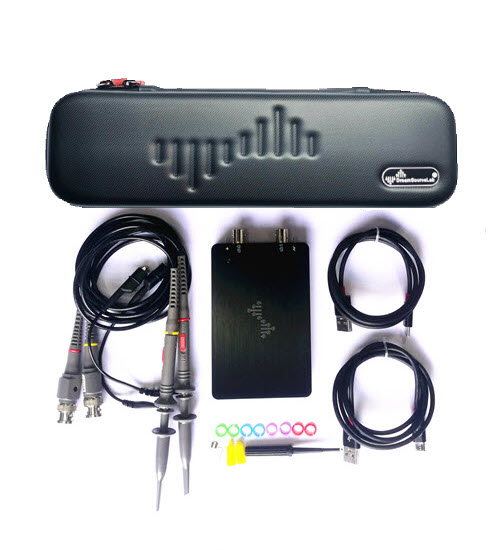

What’s in the Box

• DSCope U2P20 (fully tested)
• x2 USB cable(1.0M length, A to Type-C)
• x2 P6060 probes
• x1 Carrying Case
• Software not included — download here
